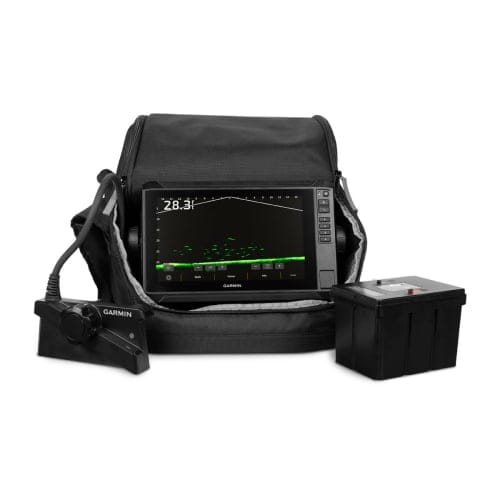

Garmin ECHOMAP UHD2 93sv, LiveScope Plus System

Garmin ECHOMAP UHD2 93sv LiveScope Plus Ice Fishing Bundle LI puts real-time sonar control in your hands when you’re hunting panfish, walleye, lake trout, and roaming predators under the ice. Powered by the LVS34-IF LiveScope Plus transducer, this setup delivers sharper resolution, reduced noise, and clearer target separation so you can scan ahead in Forward mode, drill with precision, then switch to Down mode to watch your jig and fish react live. The bright 9-inch touchscreen with 1024 × 600 resolution keeps details crisp in harsh winter light, while built-in Navionics+ mapping with over 23,000 lakes helps you find structure, mark waypoints, and return confidently. A lightweight 16.5Ah lithium-ion battery supports long run times, and the oversized portable case keeps the full system organized for ice trips, with open-water expansion available using optional SideVü and ClearVü transducers.

• Includes LVS34-IF LiveScope Plus transducer with improved clarity and target separation
• Forward and Down LiveScope modes for real-time fish and jig tracking
• 9-inch UHD touchscreen with Navionics+ maps for 23,000+ lakes
• 16.5Ah lithium-ion battery and extra-large portable carrying case
• General Specs
  • Product Number: 010-02688-35
  • Dimension: 13.8” x 12.2” x 13.0”
  • Display size: 7.8” x 4.5”, 9.0”
  • Display resolution: 1024 x 600 pixels
  • Touchscreen
  • Weight: 22.5 lbs.
• Maps & Memory
  • Accepts: 1 microSD card; 32 GB maximum size
  • Waypoints: 5000
  • Track points: 50,000
  • Tracks: 50 saved tracks
  • Navigation routes: 100
• Built-In Maps
  • Built-In Auto Guidance: Yes (downloadable via ActiveCaptain app)
  • Garmin Navionics+ Inland & Coastal: Yes
  • Garmin Nacionics+ Inland: Yes
• Ice Fishing Details
  • Battery type, size: Lithium-ion, 16.5Ah
  • Bag size: XL
  • Included transducer: LiveScope Plus System with LVS34-IF
  • Transducer holding feature: Pole mount
• In the Box:
  • ECHOMAP UHD2 Chartplotter
  • LVS34-IF transducer
  • GLS 10 sonar module
  • Ice fishing pole mount
  • Tilt mount
  • Power cable
  • Portable fishing bag with handle
  • Lithium-ion battery
  • Battery charger
  • Documentation
