Vortex Diamondback 3-9x40 BDC Scope
Vortex Diamondback 3-9x40 BDC Scope - Image 2
Vortex Diamondback 3-9x40 BDC Scope - Image 3
Vortex Diamondback 3-9x40 BDC Scope - Image 4
Vortex Diamondback 3-9x40 BDC Scope - Image 5
Vortex Diamondback 3-9x40 BDC Scope - Image 6

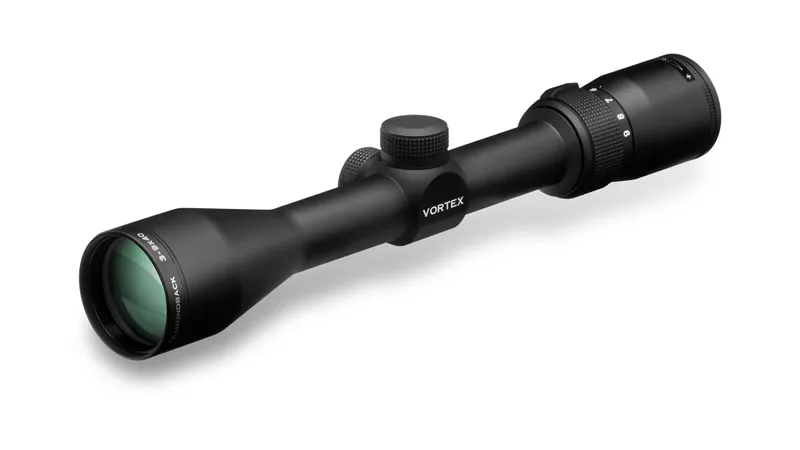

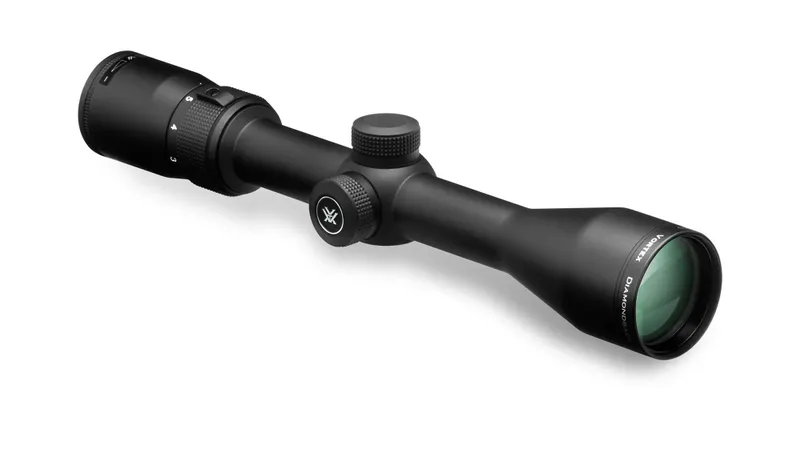

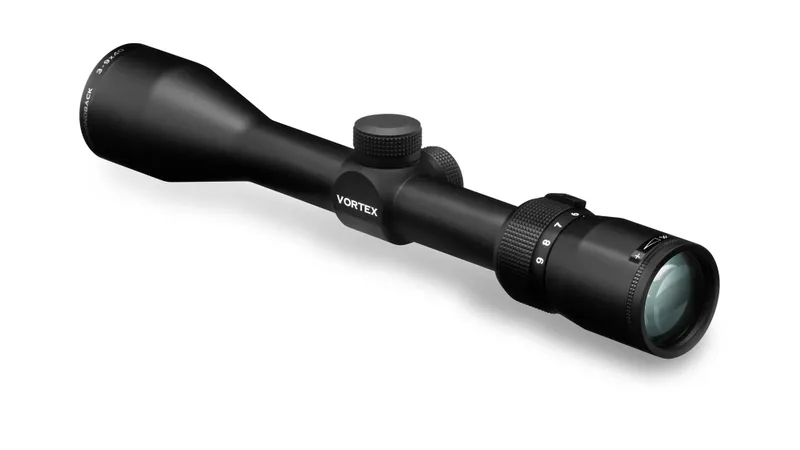

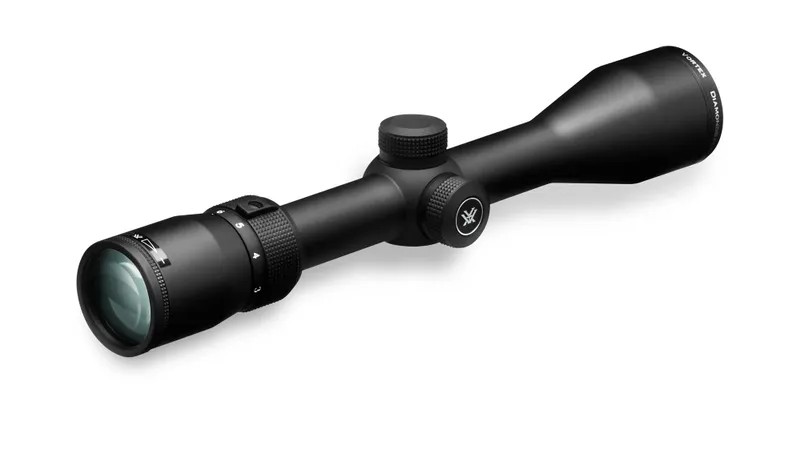

Vortex Diamondback 3-9×40 BDC Scope

$249.99

With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.

Included in the Box

  • Removable Lens Covers
  • Lens Cloth

In stock

SKU: 20316 Categories: , ,
Diamondback 3-9×40 Dimensions (in inches)
Product Dimensions
Lengths
L1L2L3L4L5L6
11.612.02.15.43.073.1
Heights
H1H2
1.891.69

Specifications

Magnification3-9x
Objective Lens Diameter40 mm
Focal PlaneSecond Focal Plane
ReticleDead-Hold® BDC (MOA)
Eye Relief3.3″
Field of View44.6′ – 14.8′ @ 100 yds
Turret StyleCapped
Tube Size1 inch
Adjustment Graduation1/4 MOA
Travel Per Rotation15 MOA
Max Elevation Adjustment70 MOA
Max Windage Adjustment70 MOA
Parallax Setting100 yds.
Length11.6″
Weight14.5 oz

Feature Tech

XD™ Optical System
Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Fast-Focus Eyepiece
Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of recoil and impact.

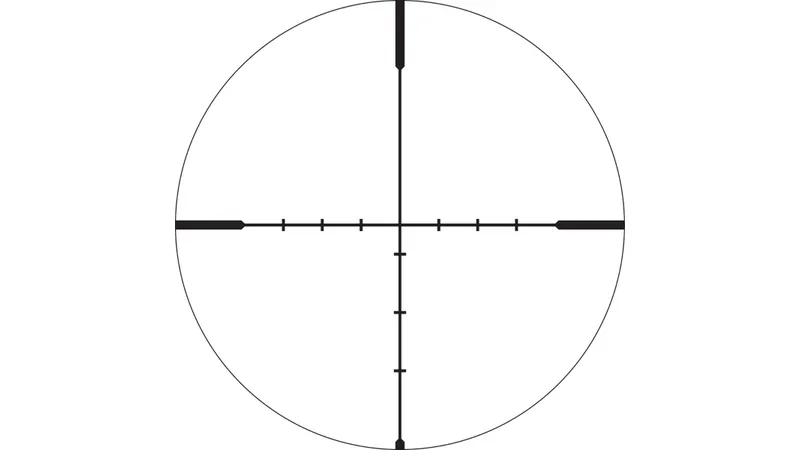

DEAD-HOLD® BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Dead-Hold BDC MOA Reticle
