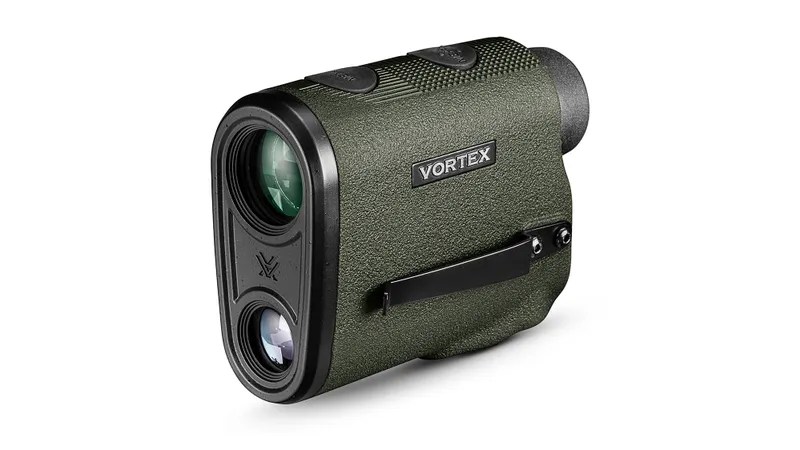

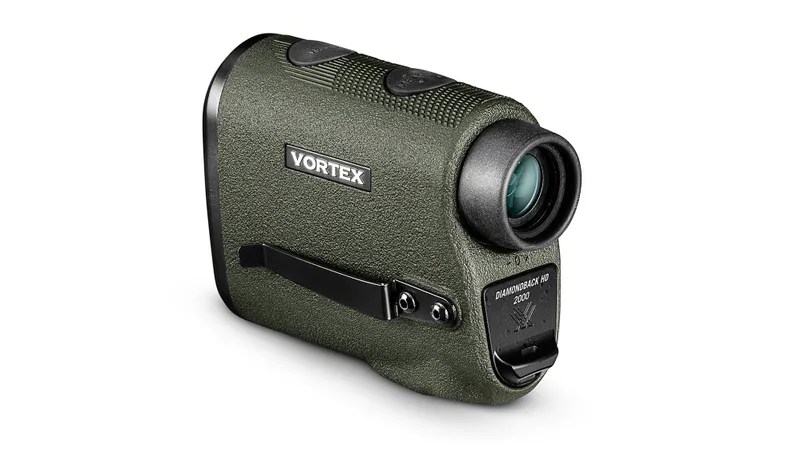

Vortex Diamondback HD 2000 Laser Rangefinder
Vortex Diamondback HD 2000 Laser Rangefinder - Image 2
Vortex Diamondback HD 2000 Laser Rangefinder - Image 3
Vortex Diamondback HD 2000 Laser Rangefinder - Image 4
Vortex Diamondback HD 2000 Laser Rangefinder - Image 5
Vortex Diamondback HD 2000 Laser Rangefinder - Image 6

Vortex Diamondback HD 2000 Laser Rangefinder

$299.99

Made for practical hunters who value no-excuses performance, Diamondback® HD 2000 is your ranging workhorse in the field. Built tough to withstand the abuse your hardest hunts can dish out, its easy-to-use controls and high-definition optical system handle everything from point-blank shots in tight timber to longer-distance game with shoulder-crushing accuracy. Simple. Tough. Reliable. It’s the rangefinder that lives up to its tag-punching promise, hunt after hunt.

In stock

SKU: 60014 Categories: , ,

Specifications

Magnification7x
Objective Lens Diameter24 mm
Eye Relief16.0mm
Angular Field of View6.4º
Linear Field of View335′ @ 1000 yds
Range Reflective (yards)Up to 2,000 yds.
Range Tree (yards)Up to 1,800 yds.
Range Deer (yards)Up to 1,400 yds.
Min Range5 yds.
Accuracy1 yds. @100 yds.
Length4.1″
Height3.1″
Width1.8″
Weight7.6 oz.
Max Angle Reading+/- 60º



Feature Tech

Ranging Modes

Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.

Line of Sight (LOS): Displays the actual line of sight range.

Scan Feature: Displays continuous distance readings while panning across a landscape.



Target Modes

Normal Mode: The standard mode providing the target’s range with the strongest range result. Recommended for most situations.

Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.



HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Red OLED Display
Optimized for low light.
Ranging Format
Range in yards or meters.
Diopter
Adjusts for differences in a user’s eyes. Located on eyepiece.
Waterproof
Designed to withstand harsh weather conditions.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter may be required.
HCD CORRECTED SHOOT-TO RANGE
The Diamondback® HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.

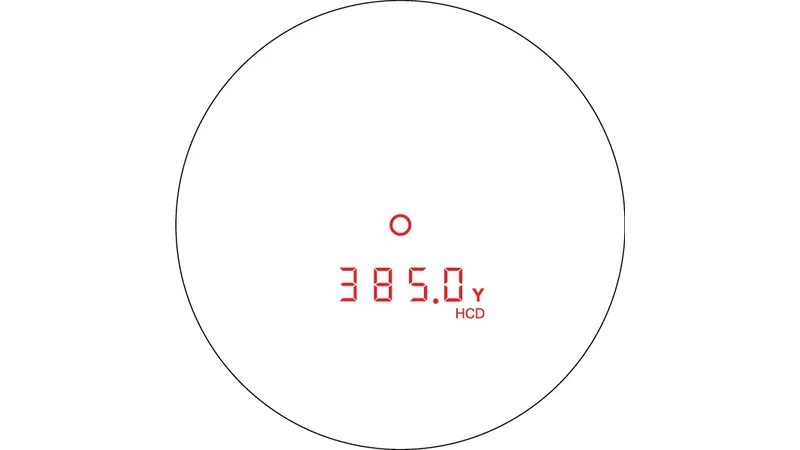

Diamondback Rangefinder Display Image
