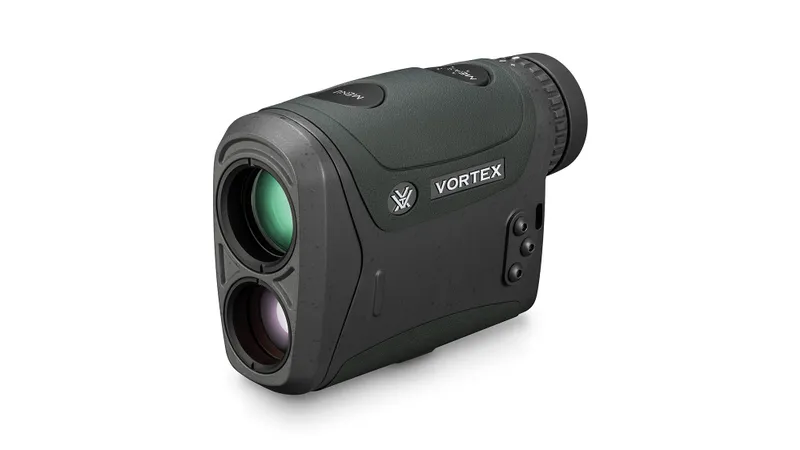

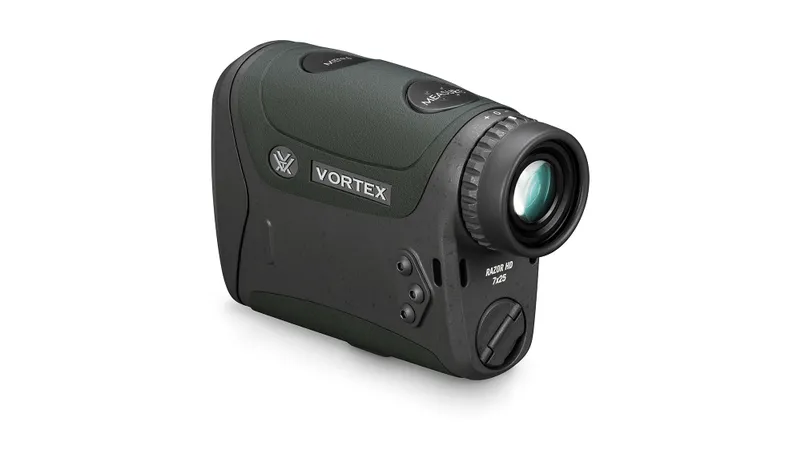

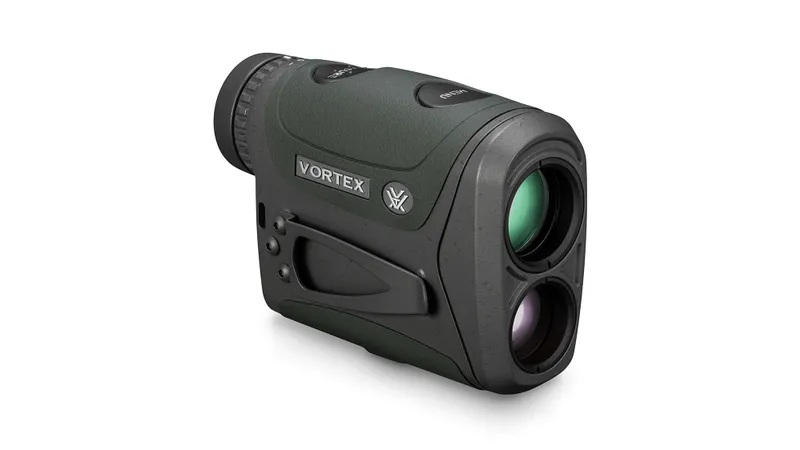

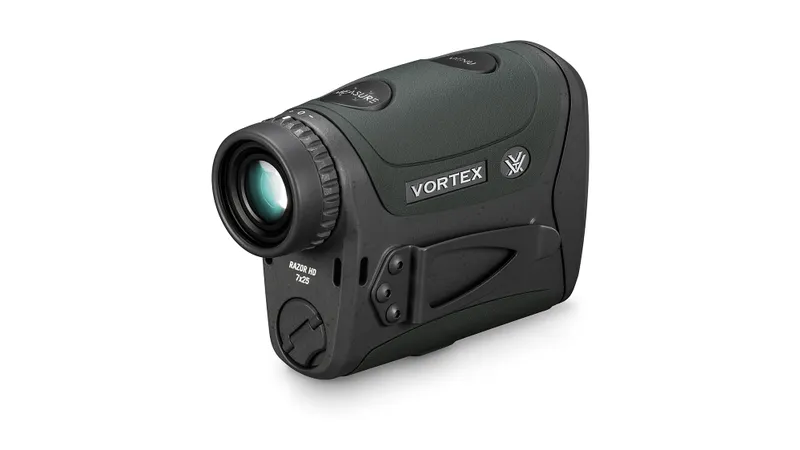

Vortex Razor HD 4000 Laser Rangefinder
Vortex Razor HD 4000 Laser Rangefinder - Image 2
Vortex Razor HD 4000 Laser Rangefinder - Image 3
Vortex Razor HD 4000 Laser Rangefinder - Image 4
Vortex Razor HD 4000 Laser Rangefinder - Image 5
Vortex Razor HD 4000 Laser Rangefinder - Image 6

Vortex Razor HD 4000 Laser Rangefinder

$499.99

When the game comes down to inches the window of opportunity is small, the Razor® HD 4000 delivers the ranging data you need to make your first shot count. Its advanced modes adapt to any field conditions, providing consistent, repeatable performance when you can’t afford to miss. Compact and rugged. Capable of ranging reflective targets out to 4,000 yards. It’s designed for serious hunters and shooters who demand performance that will never let them down.

In stock

SKU: 23689 Categories: , ,

Specifications

Magnification7x
Objective Lens Diameter25 mm
Eye Relief17.5mm
Angular Field of View6.5º
Linear Field of View341′ @ 1000 yds
Range Reflective (yards)Up to 4,000 yds.
Range Tree (yards)Up to 2,500 yds.
Range Deer (yards)Up to 2,200 yds.
Min Range5 yds.
Accuracy.5 yds @ 100 yds.
Length4.4″
Height3.1″
Width1.7″
Weight9.9 oz.
Max Angle Reading+/- 89º

Feature Tech

Ranging Modes

Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.

Line of Sight (LOS): Displays the actual line of sight range.

Scan Feature: Displays continuous distance readings while panning across a landscape.



Target Modes

Normal Mode: The standard mode providing the target’s range with the strongest range result. Recommended for most situations.

First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.

Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.

Extended Laser Range (ELR) Mode: Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly for extended range distances. Best used on a tripod.



HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR™ Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Easy-to-Use Menu
Intuitive, easy-to-use menus feature a simple, clean illuminated display.
Ranging Format
Range in yards or meters.
Diopter
Adjusts for differences in a user’s eyes. Located on the eyepiece.
Rugged Design
Built to handle tough situations. Compact and lightweight.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Magnesium Alloy Chassis
Decreases weight and increases strength.
Utility Clip
Provides quick external access on webbing or flat-edged surfaces.
Waterproof
Designed to withstand harsh weather conditions.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter may be required.

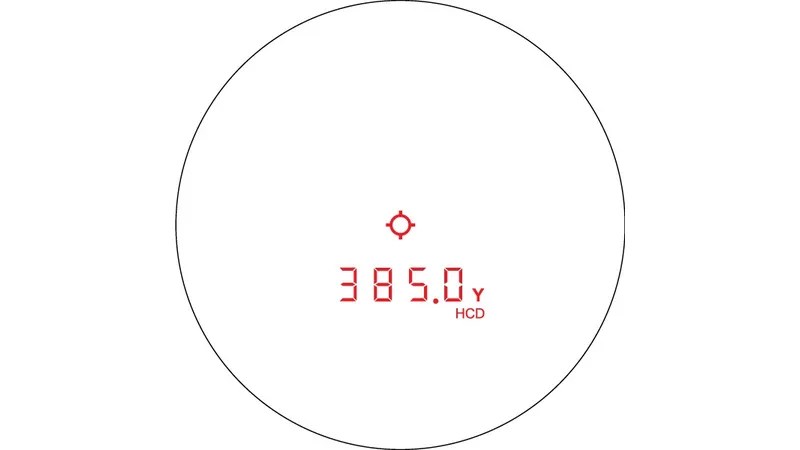

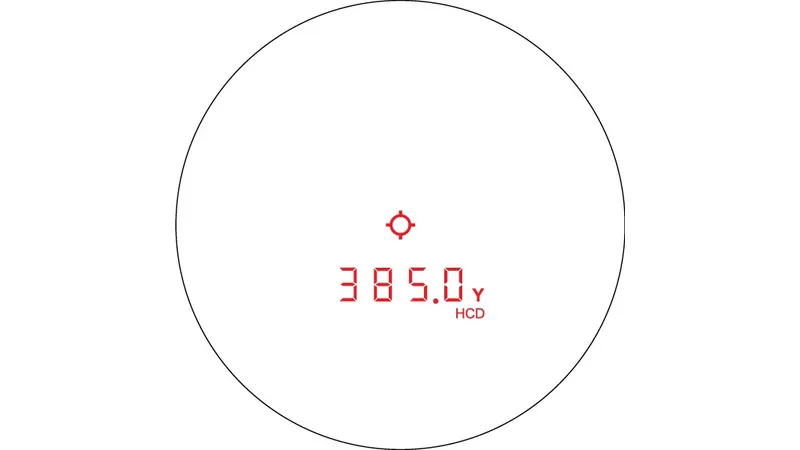

HCD CORRECTED SHOOT-TO RANGE
The Razor® HD 4000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
Razor HD Rangefinder Display Image
